50mm Cordless pruning shear

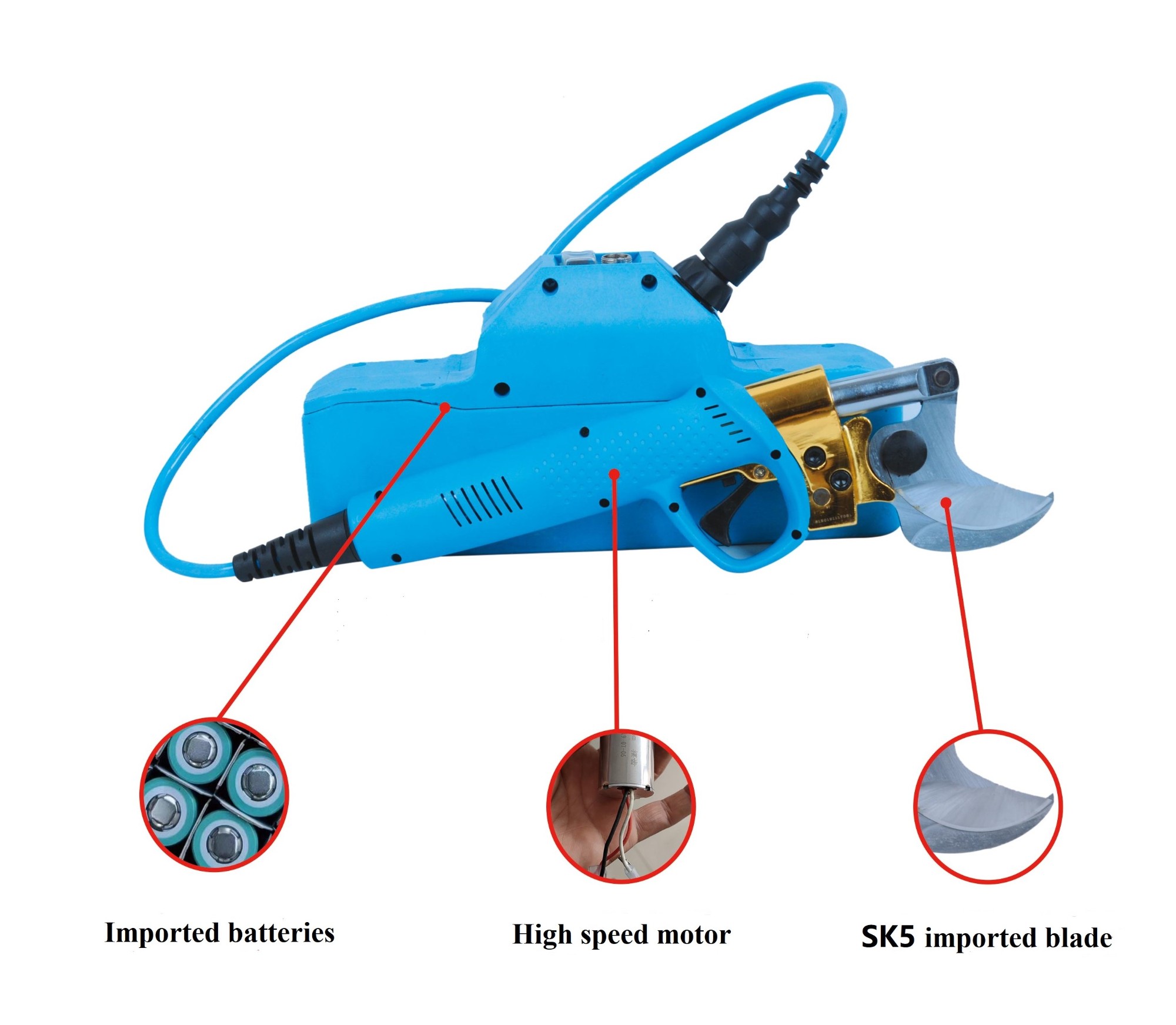

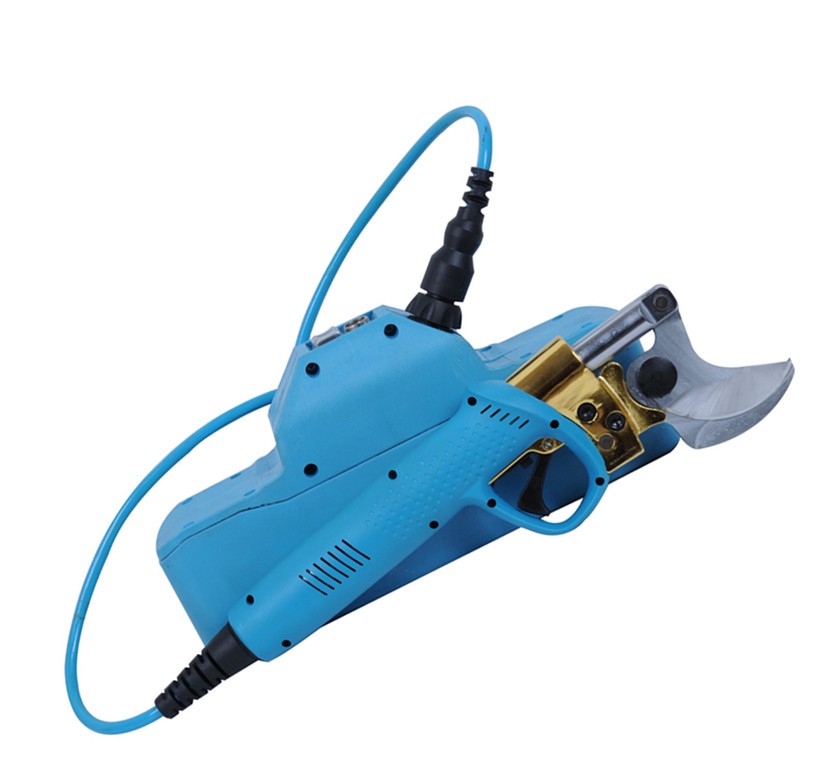

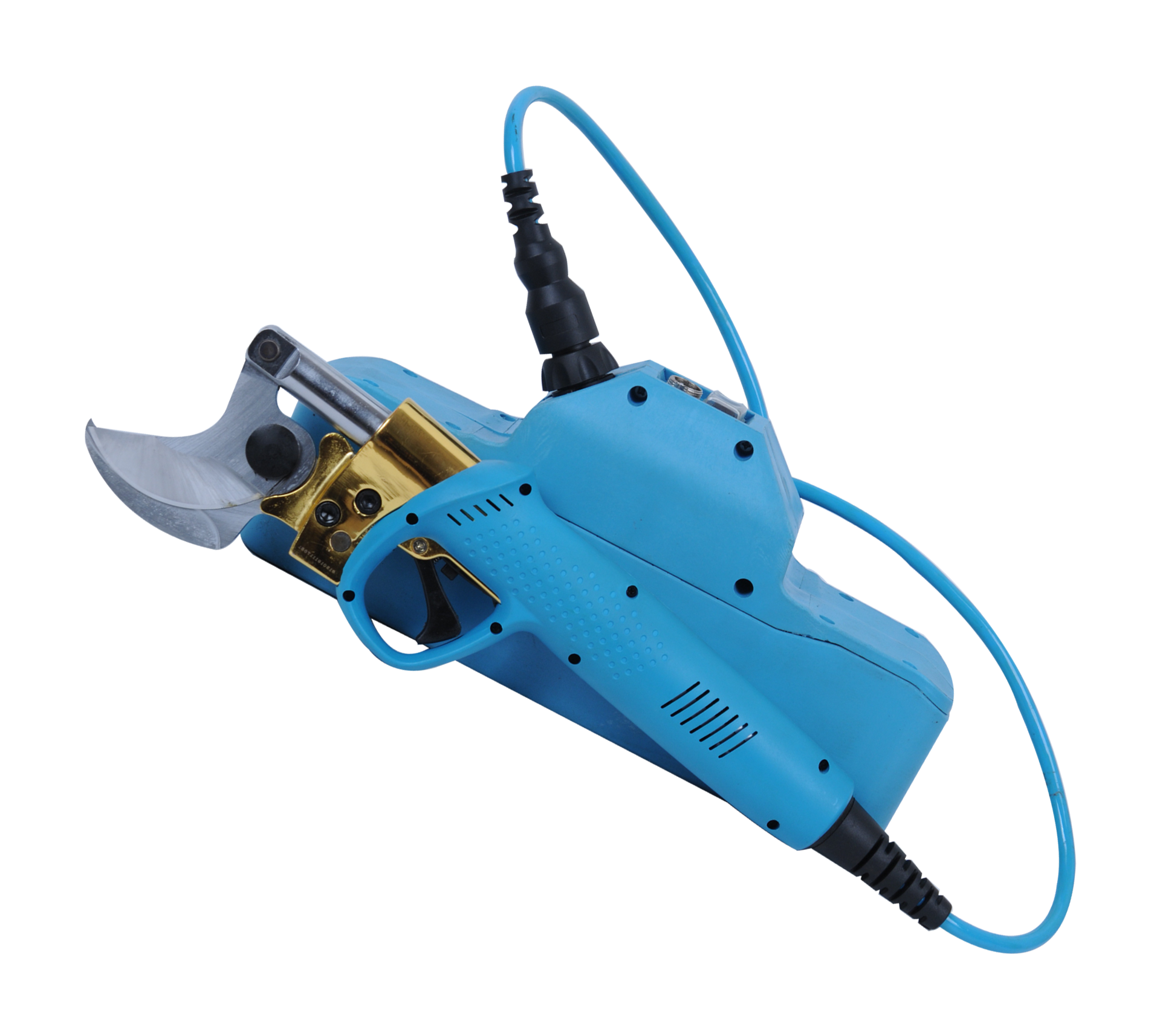

This is a battery-driven electric pruner comprises a fixed blade, a movable blade, lithium battery, battery charger, power cord, work vest, tool box and other components. Designed for cutting or trimming or less branches in fruit orchards, vineyards, etc. Simple and easy to operate, it also has 8-10 times the efficiency of traditional manual pruners. Pruning quality is significantly higher as compared to manual pruners.
| Basic information of electric | ||
| Operating voltage | 48V | 21V |
| Lithium battery | 48V 2000mAH | 21V 2000mAh |
| Charging voltage | AC110V~220V | AC110V~220V |
| Charging duration | 3~5 hours | 1~1.5 hours |
| Operating duration | 12~16 hours | 4~5 hours |
| Rated power | 1200W | 200W |
| Max power | 1500W | 800W |
| Packing size | 350*90*280mm | 350*90*280mm |
| Gross weight | 3.0 kg | 2.1 kg |
| Shear weight | 2.5kg | 1.3kg |
| Cutting range | ||
| Diameter | 50mm(1.9 in) Vine branches | 30mm(1.2in) Vine branches |
| Operating Temperature | 14℉~149℉/ -10℃~65℃ |
14℉~149℉ / -10℃~65℃ |
|
Buzzer Sound
Frequency Times |
Failure |
Solution Method |
|
1 |
Battery capacity failure |
Check if battery capacity is low |
|
2 |
Communication failure |
Check if every part of cable connector is loose |
|
3 |
Blade failure |
Oil on blade |
|
4 |
Motor phase loss |
Send it to local dealer For maintenance |
|
5 |
Motor phase line short-circuit |
Check if cable or head of the connector
has short-circuit caused |
|
Buzzer continuous ringing |
Safety warning |
Check whether body contact to the blade |
